Dry ice heat preservation box

With the wide application of dry ice, especially the development of dry ice cleaning industry, the preservation, and transportation of dry ice particles and dry ice blocks have been greatly developed. Our Shuliy machinery can not only produce the high-quality dry ice briquette machine, dry ice granular machine, and dry ice blasting and cleaning machine, but also can provide the users with related accessories and the dry ice heat preservation box for good keeping and transportation of dry ice products.

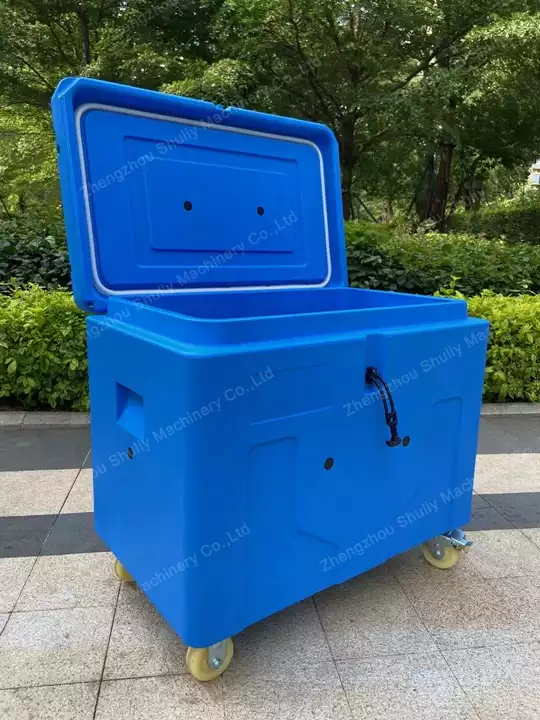

dry ice heat preservation box
dry ice heat preservation box

Brief introduction of dry ice preservation box

It is common to see that we use the foam box to keep fresh or keep low heat loss of food, aquatic products, ice cream and so on. But if we want to keep the dry ice products like dry ice particles and dry ice blocks, it will be not easy to keep these dry ice products in foam box because the dry ice is easily sublimed into gas during storage and transportation and the foam box cannot keep low inner temperature for the dry ice. Therefore, we should use the dedicated dry ice incubator to store and transport dry ice. Our dry ice heat preservation box is made of imported low-temperature resistant PE engineering plastics and has a thick insulation layer of more than 70 mm, which can effectively reduce the evaporation of dry ice.

dry ice heat preservation box application
dry ice heat preservation box application

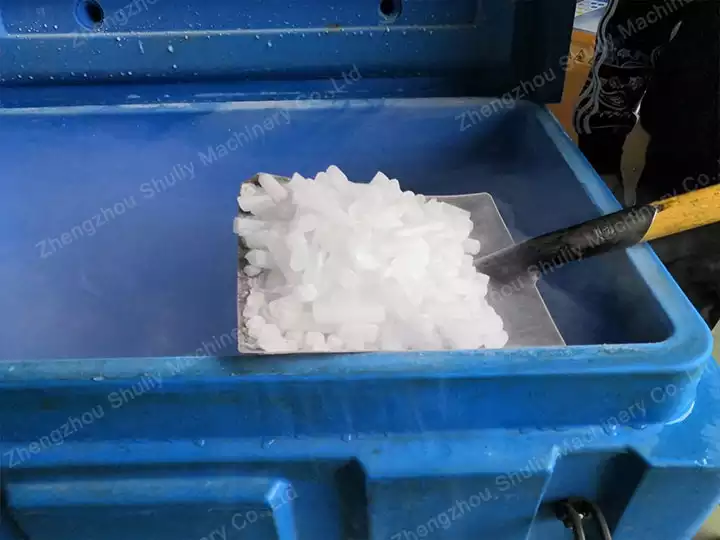

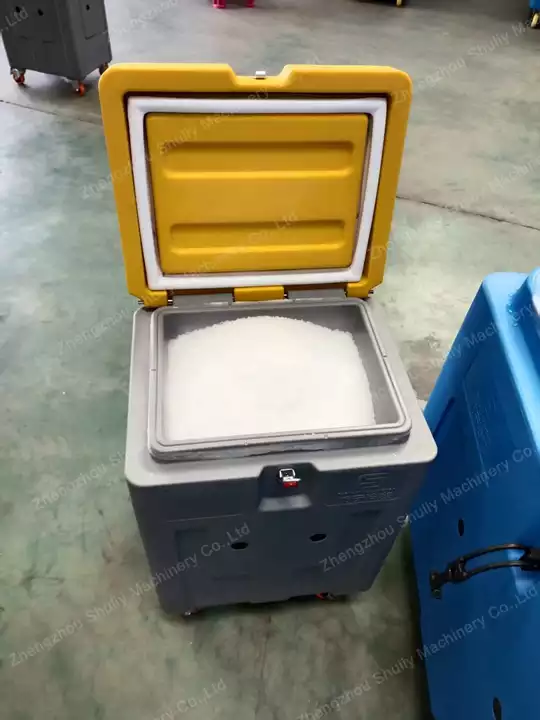

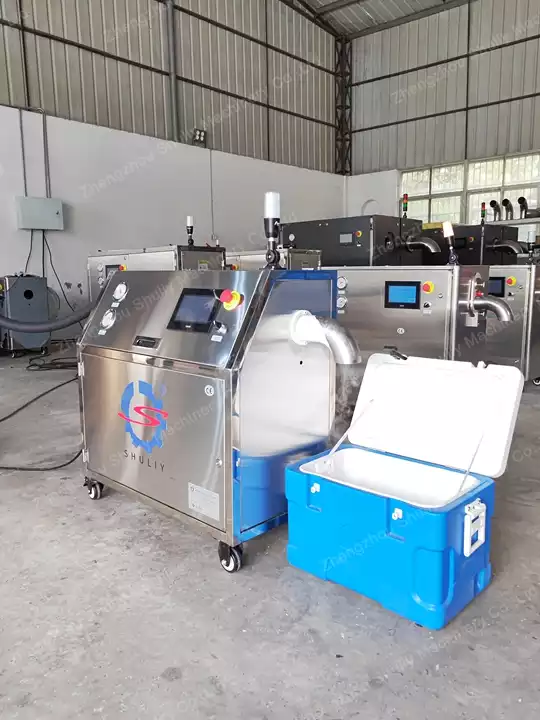

dry ice keeping
dry ice keeping

Main features of the dry ice heat preservation box

  1. This dry ice incubator has different sizes so that it can meet different requirements for dry ice storage volume and transportation volume.
  2. The incubator is made by advanced technology. The box cover and the box body are integrally formed by the mold, and the lockbox is used to close the box mouth, and the sealing property is very good.

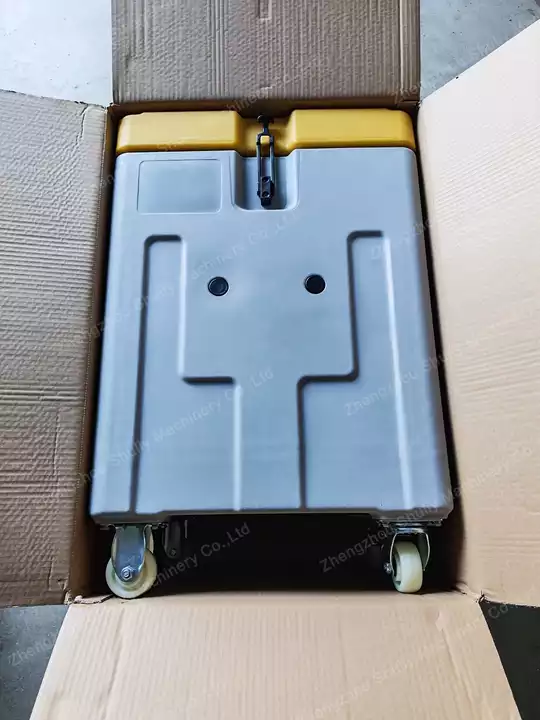

  3. The bottom of the box is equipped with a universal roller, which is durable and easy to move, saving manpower. Besides, it can also be designed as a fixed foot that can be customized to meet customer needs.
  4. The entire dry ice heat preservation box has strong insulation, wear resistance and impact resistance.
dry ice heat preservation box application
dry ice heat preservation box application

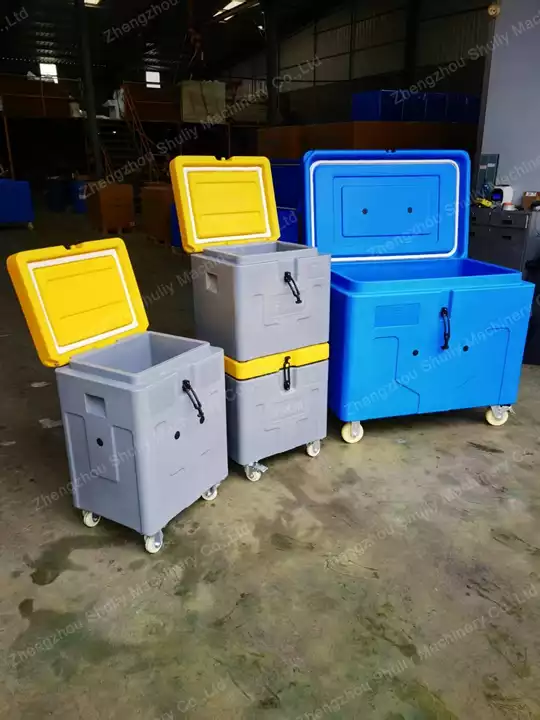

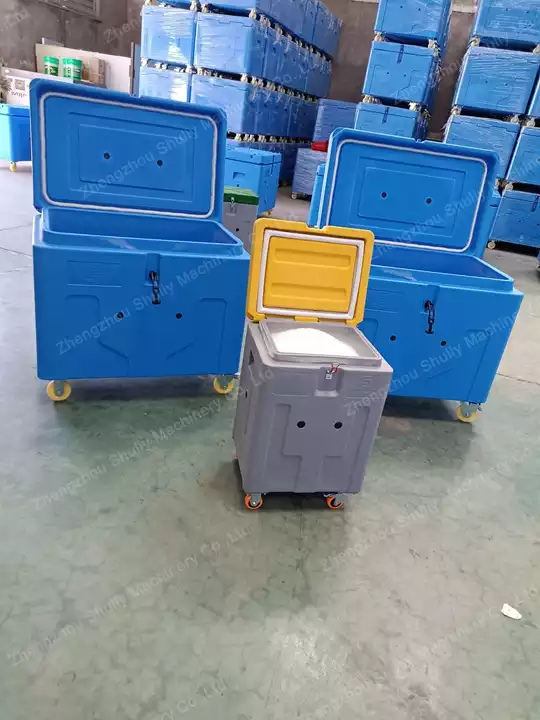

dry ice heat preservation box with different sizes
dry ice heat preservation box with different sizes

Technical parameters

ModelSL-60SL-260
Volume (L)68325
Weight (kg)2560
Heat loss (%/h)4%-6%4%-6%
Outer size (cm)57×46×93109×69×98
Inner size (cm)39×28×6394×54×65

Dry Ice Heat Preservation Box SL-60

The dry ice heat preservation box with the SL-60 model is the common one for storing and transporting dry ice particles or dry ice blocks. Its internal volume is 68 liters and this model can store more than 70kg of block dry ice, or more than 60kg of granular dry ice. This model of dry ice heat preservation box can stand temperatures of about minus 80 degrees and it has good heat preservation, wear resistance and impact resistance.

Dry Ice Heat Preservation Box SL-260

This model is bigger than the SL-60, which has a large inner volume of 325 liters. Because of its big volume, its outer and inner dimension and weight are also larger than the above model. This model can store more than 320kg of block dry ice or more than 260kg of granular dry ice. Both of the two models of dry ice heat preservation box can be designed with the fixed foot or movable rollers, we can also customize the box according to the customers’ requirements.
